Compact Disc Player CDP-701ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1983–1985
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 161167

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-701ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 105 x 385 mm / 16.9 x 4.1 x 15.2 inch
  • Notes

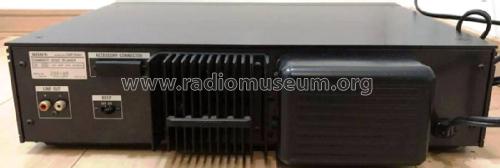

  • An early stereo hi-fi compact disc player with remote control (RM-101). RCA phono sockets for Line Output, Accessory connector (for connecting future optional equipment) and a Beep On/Off switch (a buzzer which sounds when the remote control is operated). With feather touch controls, AMS (Automatic Music Sensor), Music Scan, Location function, RMS (Random Music Sensor) and three Repeat functions. Digital display showing track and index numbers, Elapsed and Remaining time. Jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Disc Compact Disc
      Track pitch 1.6 µm
      Sampling frequency 44.1 kHz
      Quantization 16 bit linear quantizing/channel
      Modulation system EFM
      Transfer rate 2.03 Mbit/sec. (before modulation)
    Laser (KSC-100A) Semiconductor laser
    Spindle speed 200 r.p.m. to 500 r.p.m. (CLV)
    Scan velocity 1.2 - 1.4 m/sec.
    Error correction Sony Super Strategy Cross Interleave Reed Solomon Code
    Number of channels 2
    D-A conversion 16-bit linear
    Frequency response 5 - 20,000 Hz ±0.5 dB
    Harmonic distortion Less than 0.003 % (1 kHz)
    Dynamic range More than 95 dB
    Channel separation More than 90 dB
    Wow and flutter Below measurable limit
    Outputs
    Line Out Fixed Output level 2 V rms (at MSB)
    Load impedance over 10 kΩ
    Headphones 28 mW at 32 Ω

    Versions/Power requirements
    US model /  120V AC 60Hz
    Canadian model /  120V AC 60Hz
    AEP model /  220V AC 50/60Hz
    UK model /  240V AC 50/60Hz

    Power consumption:   38 W

  • Net weight (2.2 lb = 1 kg)
  • 10.8 kg / 23 lb 12.6 oz (23.789 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • Sony Katalog 83/ 84 - Seite 4
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service manual CDP-701ES dated 1983)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
