Compact Disc Player CDP-970

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 221593

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-970 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 340 mm / 16.9 x 4.3 x 13.4 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D570). Dual 18-Bit D/A Converters with an 8 Times Oversampling 45-Bit Digital Filter, Digital Sync and Noise Shaping. 20-Key Direct Access Track Selection, Shuffle, Repeat and Search Modes, Program Edit, Custom File Programming, 20-Track Music Calendar Display.  Headphone jack, remote-controlled volume.

    Specification
    Frequency response 2 Hz - 20 kHz ± 0.3 dB
    Signal to noise ratio More than 110 dB
    Dynamic range More than 97 dB
    Harmonic distortion Less than 0.003 %
    Channel separation More than 100 dB

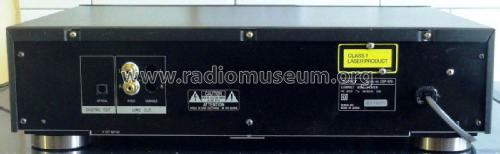

    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wavelength 660 nm
    Output level -18 dBm
    Headphones (stereo phone jack) Output level max. 28 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model:  /  120V AC 50/60Hz
    AEP model:  /  220V AC 50/60Hz
    UK model:  /  240V AC 50/60Hz

    Power consumption     13 W

    Anschlüsse

    • Ausgänge:
      • Line-Out fixed, Line-Out variabel,
      • Optischer Digitalausgang,
      • Kopfhörerausgang, fernbedienbare Lautstärke

    Technische Daten

    • Wandler: 18bit (DAC 2xPCM58P)
    • Laser: KSS-150A
    • Frequenzgang: 2-20 kHz
    • Dynamikbereich: > 97 dB
    • Signalrauschabstand: > 110 dB
    • Klirrfaktor: < 0,003%
    • Kanaltrennung: > 100 dB
    • Shuffle
    • Titel-Programmierung: 20 Titel
    • Spielt CD-R

    Besondere Ausstattungen

    • Infrarotfernbedienung
    • MEMO-Funktion (freie Eingabe einer CD-Kennung)
    • speicherbare CD-Indexpunkte.
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 900.00 DM
  • Mentioned in
  • -- Original prospect or advert (1989 Sony Catalogues)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-970)
