Compact Disc Player CDP-C315M

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 317123

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220-230; 240; 110-120; 220-230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-C315M - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 355 x 120 x 385 mm / 14 x 4.7 x 15.2 inch
  • Notes

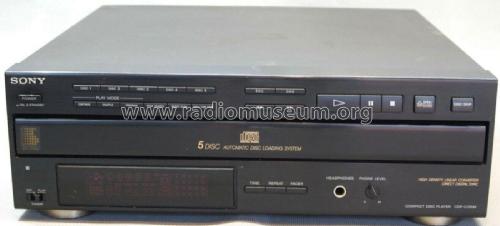

  • A midi sized stereo hi-fi 5 disc carousel changer compact disc player with remote control (RM-D315). 5 Disc Automatic Disc Loading System, High Density Linear Conversion, Direct Digital Sync. RCA phono sockets for Line Output, jack for headphones with volume control.

    Specification
    System  Compact disc digital audio system
    Laser (KSS-240A) Semiconductor laser (λ = 780 nm)
    Emission duration: continuous
    Frequency response 2 Hz - 20 kHz (±0.5dB)
    Signal to noise ratio More than 100 dB
    Dynamic range More than 98 dB
    Harmonic distortion Less than 0.005% (1 kHz)
    Channel separation More than 100 dB (1 kHz)
    Wow and flutter Below measurable limit
    Outputs
    Line Out
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Headphones
    (stereo phone jack)    		 Output level 0 - 10 mW (variable)
    (at 32 Ω)

    Versions/Power requirements
    AEP model /  220-230V AC 50/60Hz
    Australian model /  240V AC 50Hz
    E model /  110-120V, 220-240V AC 50/60Hz adjustable

    Power consumption:   12 W

    Similar to the Sony CDP-C313M Compact Disc Player (UK model) which is not supplied with a remote control.

  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual CDP-C313M/C315M dated 1991.3)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
