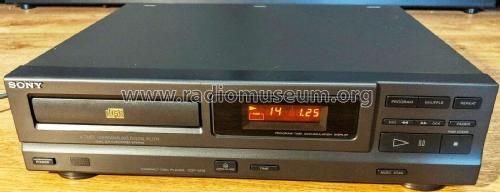

Compact Disc Player CDP-M18

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 316285

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-M18 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 355 x 95 x 305 mm / 14 x 3.7 x 12 inch
  • Notes

  • A midi sized stereo hi-fi compact disc player. Dual D/A Converter System, 4 Times Oversampling Digital Filter. RCA phono Line Out sockets.

    Specification
    Frequency response 2 Hz-20 kHz +1dB,-1.2dB
    Signal to noise ratio More than 93 dB
    Dynamic range More than 90 dB
    Harmonic distortion Less than 0.05%
    Channel separation More than 90 dB
    Outputs
    Line Out
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ

    Versions/Power requirements
    AEP model : 220 V AC 50/60 Hz (or 240 V AC internally adjustable)
    UK model : 240 V AC 50/60 Hz (or 220 V AC internally adjustable)

    Similar to the Sony CDP-M19 Compact Disc Player which has a headphones jack and to the Sony CDP-M39 Compact Disc Player which has a headphones jack and remote control.

    Made in France and Japan

  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-M19/M19/M39)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
