Compact Disc Player CDP-M39

Sony Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1991 ?
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 316284

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 220; 240 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Compact Disc Player CDP-M39 - Sony Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 355 x 95 x 305 mm / 14 x 3.7 x 12 inch
  • Anotaciones

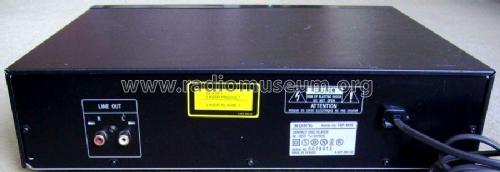

  • A midi sized stereo hi-fi compact disc player with remote control (RM-D90). Dual D/A Converter System, 4 Times Oversampling Digital Filter. RCA phono Line Out sockets, jack for headphones with volume control.

    Specification
    Frequency response 2 Hz-20 kHz +1dB,-1.2dB
    Signal to noise ratio More than 93 dB
    Dynamic range More than 90 dB
    Harmonic distortion Less than 0.05%
    Channel separation More than 90 dB
    Outputs
    Line Out
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Headphones
    (stereo phone jack)    		 Output level max. 10 mW
    Load impedance 32 Ω

    Versions/Power requirements
    AEP model : 220 V AC 50/60 Hz (or 240 V AC internally adjustable)
    UK model : 240 V AC 50/60 Hz (or 220 V AC internally adjustable)

    Similar to the Sony CDP-M19 Compact Disc Player which has no remote control and to the Sony CDP-M18 Compact Disc Player which has no remote control nor headphones jack.

    Made in France and Japan

  • Peso neto
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Mencionado en
  • -- Original prospect or advert (Sony Hi-Fi Audio '91 catalogue)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service Manual CDP-M19/M19/M39)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
