Compact Disc Player CDP-X229ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 316367

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-X229ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 340 mm / 16.9 x 4.3 x 13.4 inch
  • Notes

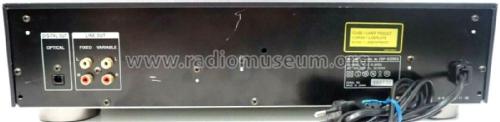

  • A stereo hi-fi compact disc player with remote control (RM-D991). High Density Linear Converter, Direct Digital Sync. Continuous play, Shuffle play, Delete play, Repeat play, Program play, Auto Cue, Fade in/Fade out, Custom Edit function (Pause program, Program edit, Multi-disc program), Time edit/Just edit, Time fade, Peak search, Music scan play, Custom File function (Disc memo, Program bank, Memory-Delete bank, Custom index, Level file). RCA phono Fixed and Variable Line Out sockets, digital optical output connector, jack for headphones with volume control.

    Specification
    Laser
    (KSS-240A)    		 Semiconductor laser, (λ = 780 nm)
    Emission duration: continuous
    Frequency response 2 Hz - 20 kHz ± 0.3 dB
    Signal to noise ratio More than 115dB
    Dynamic range More than 100 dB
    Harmonic distortion Less than 0.0023%
    Channel separation More than 110 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2V (at 50 kΩ)
    Load impedance over 50 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wave length 660 nm
    Output level -18 dBm
    Headphones
    (Stereo phone jack)    		 Output level max. 28 mW
    Load impedance 32 Ω

    Versions/ower requirements
    US model /  120V AC 60Hz
    Canadian model /  120V AC 60Hz
    AEP model /  220-230V AC 50/60Hz
    UK model /  240V AC 50/60Hz
    E model /  110-120 / 220-240V AC 50/60Hz

    Power consumption:   15W

  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-X229ES dated 1992.3)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions CDP-X229ES CDP-X339ES)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
