Compact Disc Player CDP-X222ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991/1992
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 219511

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-X222ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 340 mm / 16.9 x 4.3 x 13.4 inch
  • Notes

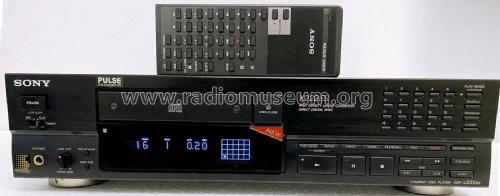

  • A stereo hi-fi compact disc player with remote control (RM-D991). RCA phono sockets for fixed and variable Line Out, connector for Optical digital output. Jack for headphones.

    Specification
    Frequency response 2Hz - 20 kHz ± 0.3dB
    Signal-to-noise ratio More than 115 dB
    Dynamic range More than 100 dB
    Harmonic distortion Less than 0.0025%
    Channel separation More than 105 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 50 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wave length 660 nm
    Output level  -18 dBm
    Phones
    (stereo phone jack)    		 Output level max. 28 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US Model:  / 120 V AC, 60 Hz
    Canadian Model: /  120 V AC, 60 Hz
    AEP model: / 220-230V AC, 50/60Hz
    UK, model: / 240V AC, 50/60Hz
    Australian model: / 240V AC, 50/60Hz
    E model: / 110-120, 220-240V AC adjustable, 50/60Hz

    Power consumption:    17W

  • Net weight (2.2 lb = 1 kg)
  • 6.2 kg / 13 lb 10.5 oz (13.656 lb)
  • Mentioned in
  • -- Original prospect or advert (1991-92 Sony Sound and Vision catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-X222ES dated 1991.3)
