CRF-V21
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165880

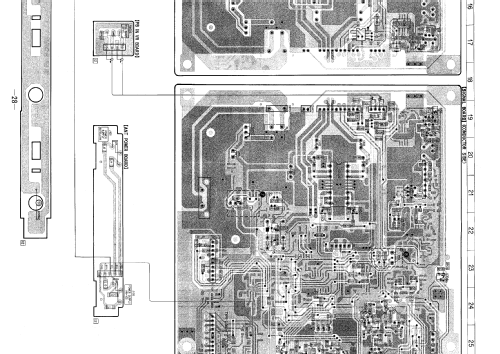

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 55845/455 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio with other functions
- Power type and voltage
- Line / Batteries (any type) / 110; 220; 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CRF-V21 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 420 x 260 x 170 mm / 16.5 x 10.2 x 6.7 inch
- Notes
- Sony CRF-V21
Empfangsteil für den LMK - Bereich von 9 kHZ - 30 MHz
Empfangsteil für UKW - Rundfunk von 87,5 MHz - 108 MHz
Alle Betriebsarten: AM; AM - SYNCH; SSB; RTTY; Schmalband - FM; Standard - FM
Thermodrucker (Printer)
RTTY - Decoder für Baudot und ASCII
SAT - Konverter
HF - Spektrumanalysator
NF - Spektroskop für RTTY und Fax
RS - 232C - Schnittstelle (bidirektional)
350 Speicher plus 70 Speicher für automatische Belegung
Timer für acht separate Zeitschaltprogramme
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Literature/Schematics (1)
- Sony - Weltempfänger 1998
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
