• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1987

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 268905

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• - without

• Details
• Special Tape or Cassette-Format; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

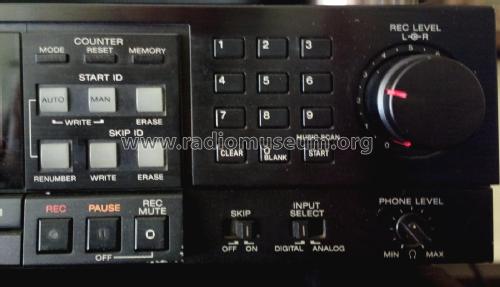

• Model: Digital Audio Tape Deck DTC-1000 ES - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 432 x 97 x 420 mm / 17 x 3.8 x 16.5 inch

• Notes

• Specifications

  Track System: 2-channel stereo

  Tape Speed: 8.15 mm/s

  Recording Time: 120 minutes

  Heads: 2000rpm, rotary

  D/A Converter: 16 bit linear

  A/D Converter: 16 bit linear

  Sampling Frequency: 48, 44.1, 32kHz

  Frequency Response: 2Hz to 22kHz

  Signal to Noise Ratio: 92dB

  Dynamic Range: 90dB

  Total Harmonic Distortion: 0.0055%

  Digital Inputs: coaxial

  Digital Outputs: coaxial

  Accessories: remote control

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
