Digital Kitchen Clock Radio ICF-C560L

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1985 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
146438

Schematics

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2572978) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2572999) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573002) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573003) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573004) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

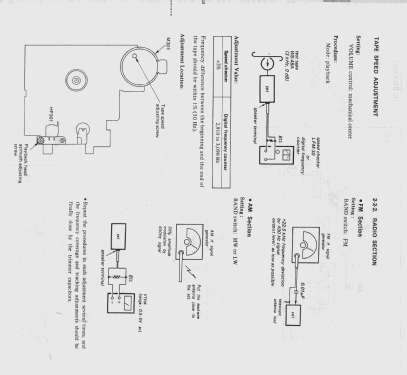

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573005) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573006) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573007) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573008) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573009) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573010) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573011) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2573012) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (3)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712324) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 561243) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)
J-Sony-ICF-560L

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 561248) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

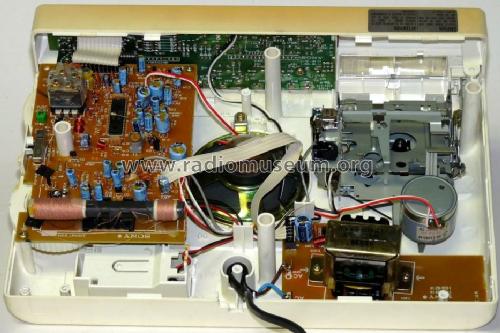

ICF-C560L-Innen

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 561245) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)
ICF-C560L-Rueckw.

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 561247) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)
ICF-C560L-Typenschild

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712308) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712309) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)
Auszug aus der Bedienungsanleitung

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712311) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)
IC-Type auf der Hauptplatine = CXA 1019S

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712312) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712313) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712314) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712315) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712316) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712317) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712319) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712320) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 1712322) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

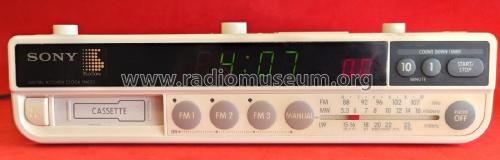

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574035) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574036) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574039) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574046) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

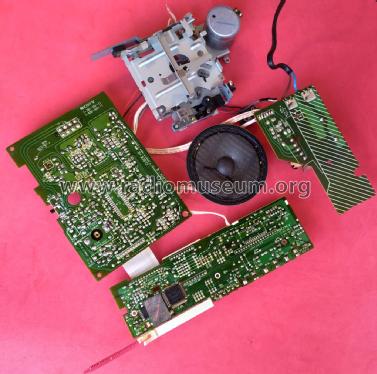

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574051) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574055) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2574060) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581684) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581685) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581686) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581687) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581688) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

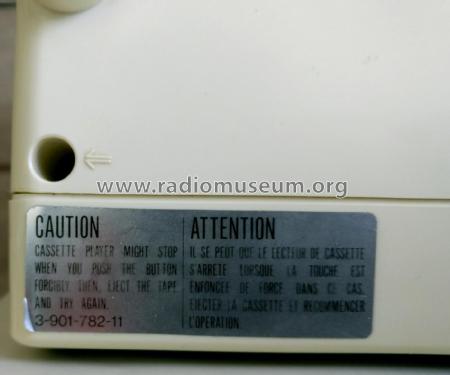

Digital Kitchen Clock Radio ICF-C560L; Sony Corporation; (ID = 2581689) Radio — Sony Corporation; Digital Kitchen Clock Radio ICF-C560L (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
CXA1019 SN7402 LM8560

Main principle
Superheterodyne (common)

Wave bands
Broadcast, Long Wave and FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

Power out
0.5 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Digital Kitchen Clock Radio ICF-C560L - Sony Corporation; Tokyo

Shape
Miscellaneous shapes - described under notes.

Dimensions (WHD)
280 x 67 x 200 mm / 11 x 2.6 x 7.9 inch

Notes
Küchen-Unterbau-Radio mit Mono-Tape und Uhr sowie Count-Down Timer.

Stützbatterie für Uhr 9 Volt (6F22)

This radio uses the power cord as the FM antenna, where sensitivity offered by the "system on a chip" CXA1019S IC is good even in poor reception areas. System control uses a customized complex gate array UPD65012GC-U00-386 IC.

Net weight (2.2 lb = 1 kg)
1.5 kg / 3 lb 4.9 oz (3.304 lb)

Price in first year of sale
1,190.00 ATS

Source of data
- - Data from my own collection

Author
Model page created by Klemens Rhode. See "Data change" for further contributors.
