Digital Micro Tape - Cassette NTC-60, NTC-90, NTC-120

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1992
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 331685

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Special Tape or Cassette-Format
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Micro Tape - Cassette NTC-60, NTC-90, NTC-120 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 30 x 21.5 x 5 mm / 1.2 x 0.8 x 0.2 inch
  • Notes

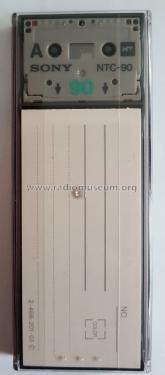

  • NT Cassette Tape Specification:

    This cassette of magnetic tape was developed in 1992 for the first Sony Digital Micro Recorder NT-1, also designated as “Scoopman”, but was also used in the Sony Digital Micro Recorder NT-2 launched in 1994.

    Tape Width: 2.5 mm

    Length of tape was appropriated for recordings with the following recording times: 60, 90 and 120 minutes. Cassette types:  NTC-60, NTC-90, and NTC-120.

    NT cassettes are of a Non-Loading type, which means instead of having a mechanism to pull the tape out of the cassette and wrap it around the drum, the drum is pushed inside the cassette to achieve the same effect. This reduces the complexity of the mechanics of Scoopman recorders.

  • Net weight (2.2 lb = 1 kg)
  • 0.002 kg / 0 lb 0.1 oz (0.005 lb)
  • Price in first year of sale
  • 12.00 USD
  • Author
  • Model page created by Moisés Piedade. See "Data change" for further contributors.
