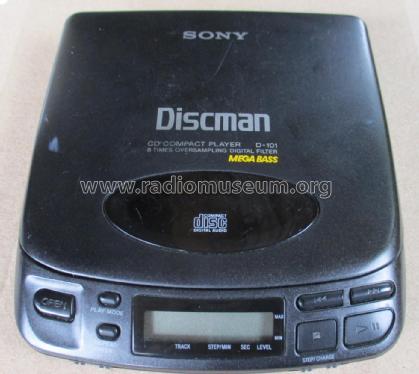

Discman Compact Disc Compact Player D-101

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 355234

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 V / DC 6 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.018 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Discman Compact Disc Compact Player D-101 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 132 x 27 x 150 mm / 5.2 x 1.1 x 5.9 inch
  • Notes

  • D/A conversion: 16 bit linear 8fs digital filter

    Outputs for headphone (9 mW + 9 mW at 16 Ω) and line (0.55 V at 50 kΩ load impedance), measured with 6 V supply voltage.

    Supply voltage: 1x NiCd 2.4 V rechargeable battery BP-DM1 or AA 2 x 1.5 V

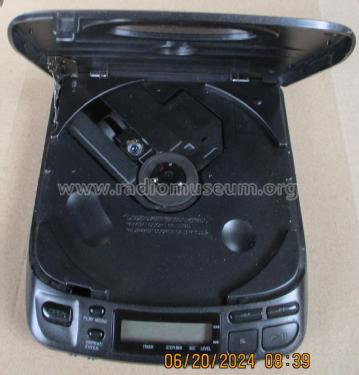

    CD mechanism: KSM-330AAN, same as used in Discman D-202

  • Net weight (2.2 lb = 1 kg)
  • 0.320 kg / 0 lb 11.3 oz (0.705 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Oskar Elm. See "Data change" for further contributors.
