• Country
• Spain

• Manufacturer / Brand
• Sony España; Hispano Sony; Kosmos Eléctrica; Las Franquesas del Vallés

• Year
• 1981 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 332659

• • alternative name: Hispano Sony S.A.

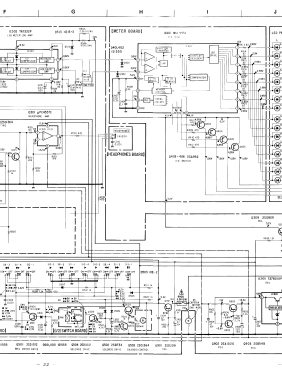

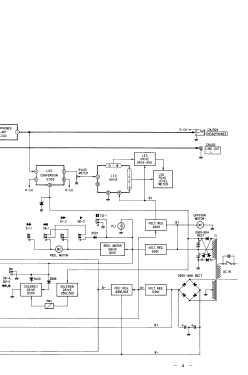

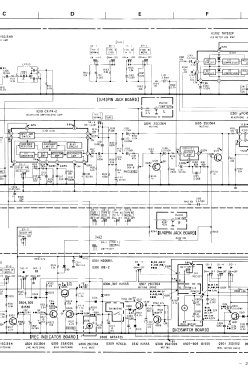

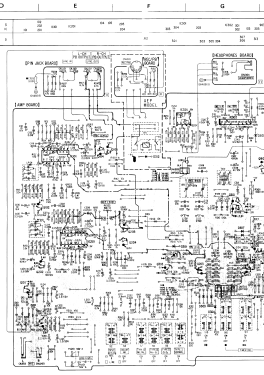

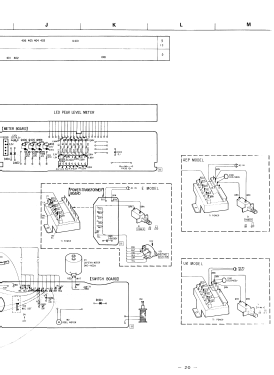

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

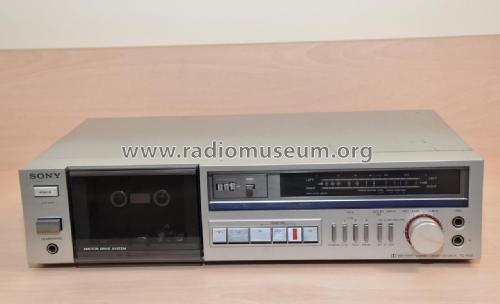

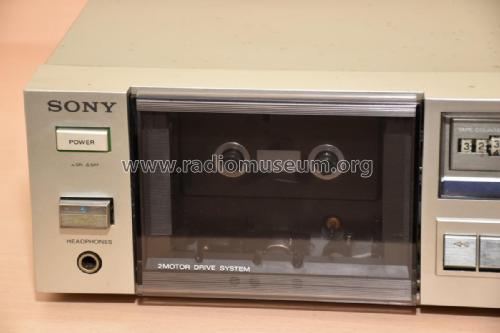

• Model: Stereo Cassette Deck TC-FX3 - Sony España; Hispano Sony;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 105 x 255 mm / 16.9 x 4.1 x 10 inch

• Notes
• • 2-head, single compact cassette deck
  • Track System: 4-track, 2-channel stereo
  • Tape Speed: 4.8 cm/s
  • Heads: 1 x record/playback, 1 x erase
  • Tape Type: type I, CrO₂, Metal
  • Noise Reduction: B
  • Frequency Response: 20 Hz to 17 kHz  (Metal tape)
  • Signal to Noise Ratio: 66 dB  (dolby B)
  • Wow and Flutter: 0.05 %
  • Total Harmonic Distortion: 1.0 %
  • Input: 77.5 mV (line), 0.25 mV (mic)
  • Output: 0.435 V (line)
  • 2 Mono Microphone Inputs
  • RCA Input/Output Connectors
  • Headphones
  • Digital Peak-Reading Meters
  • Auto-Play
  • Individual Input Level Controls

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
