• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210683

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 170 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

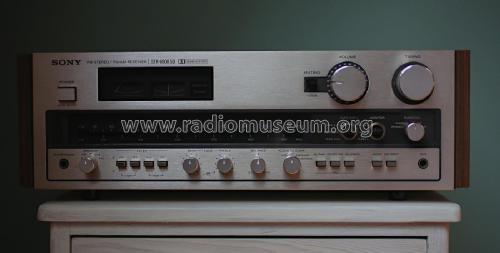

• Model: FM Stereo/ FM-AM Receiver STR-6800SD - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 490 x 170 x 415 mm / 19.3 x 6.7 x 16.3 inch

• Notes
• FM Stereo/FM-AM Receiver, 2x 85 watts into 8 ohms, THD 0,15%, 10 - 30000Hz, Dolby FM.
  Bass-, Treble-Control, Low-Filter (25, 50Hz), High-Filter (5, 10kHz), Tape Copy, Monitor, Multipath.

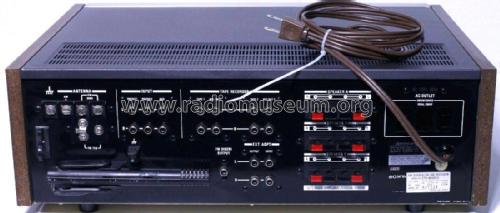

  Inputs: 2x Phono (MM), Ext. Adapter, DIN, AUX2, Tape1, Tape2
  Output: 3x 2 Speakers Impedance 8 Ohm/Speaker, Headphone (6,3mm).
  Signal- and Tuning Meter.
  Wooden Side panels.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Mentioned in
• Funkschau (23/1976, S. 979 / HiFi 76 in Düsseldorf)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
