• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210281

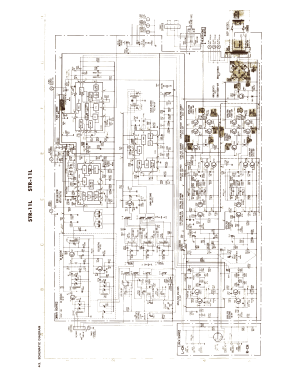

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: FM Stereo/FM-AM Receiver STR-11L - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Notes
• FM Stereo/FM-AM Receiver mit 2x 45 Watt Musik an 4 Ohm, 10 - 50000 Hz.
  Bass-, Treble- und Loudness Control.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
