FM Stereo / FM-AM Tuner ST-JX520

Sony Corporation; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1985 ?
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 257043

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Semiconduttori
  • Principio generale
  • PLL, Phase-locked loop; ZF/IF 450/10700 kHz
  • Gamme d'onda
  • Onde medie (OM) e MF (FM).
  • Particolarità
  • Telecomando (con o senza filo)
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 120; 220; 240 Volt
  • Altoparlante
  • - Per cuffie o amplificatori esterni
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: FM Stereo / FM-AM Tuner ST-JX520 - Sony Corporation; Tokyo
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 430 x 80 x 270 mm / 16.9 x 3.1 x 10.6 inch
  • Annotazioni

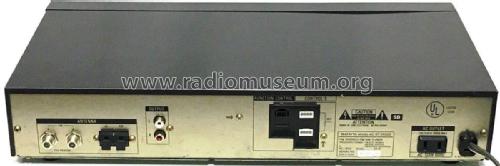

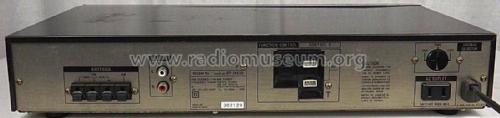

  • A hi-fi AM/FM stereo Quartz Lock Digital Synthesizer tuner with a LCD digital Band/Frequency display, housed in a black metal case, with infrared remote control. With press buttons for Tuning down and Tuning up, Band (FM, AM), Memory, Stereo Muting, Stereo indicator and 12 keys for 6 FM and 6 AM preset radio stations. The US model also has a press button for Antenna selection. On the back, terminals for AM and FM antennae, RCA phono line output sockets, AC mains outlet (500W max) and connectors for Function Control (for connection to the SYNC connector on other components) and Control S In/Out (for system remote control). Supplied with remote control (RM-S520), remote control cord, function control cord, ribbon antenna, connecting cord, layout-free antenna, adaptors and station labels.

    Specification
    FM tuner section
    Tuning range 87.5MHz - 108MHz
    Antenna terminals 75Ω unbalanced, 300Ω balanced (not US model)
    Sensitivity at 50dB quieting 16.1dBf, 1.8µV (mono), 37.9dBf, 21µV (stereo)
    Usable sensitivity 10.3dBf, 0.9µV (IHF)
    Signal/Noise ratio
    (at 75kHz deviation)    		 82dB (mono), 76dB (stereo)
    Harmonic distortion at 1kHz 0.1% (mono), 0.25% (stereo)
    IM distortion 0.1% (mono), 0.25% (stereo)
    Separation at 1kHz 50dB
    Frequency response 30Hz - 15kHz +0.2dB,-1.8dB
    Selectivity at 400kHz 75dB
    Capture ratio 1.0dB
    AM suppression ratio 55dB
    Image response ratio 45dB
    IF response ratio 90dB
    Spurious response ratio 75dB
    Output level/impedance
    at 75kHz deviation    		 750mV, 4.7kΩ
    AM tuner section
    Tuning range 531 - 1,602kHz (9kHz step)
    530 - 1,610kHz (10kHz step)
    Antenna Layout-free AM antenna
    External antenna terminal
    Usable sensitivity
      Layout-tree AM antenna 300µV/m (at 999 or 1,000kHz)
      External antenna 30µV (at 999 or 1,000kHz)
    Signal/Noise ratio 50dB (50mV/m)
    Harmonic distortion 0.3% (at 50mV/m, 400Hz)
    Selectivity 35dB (9kHz), 38dB (10kHz)

    Versions/Power requirements
    US Model  /  120V AC 60Hz
    E Model    /  120, 220, 240V AC 50/60Hz with voltage selector

    Power consumption:    18 W (E model), 20 W (US model)

    The similar Sony ST-JX520L FM Stereo / FM-AM Tuner additionally has LW.

  • Peso netto
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Letteratura / Schemi (1)
  • - - Manufacturers Literature (Service Manual ST-JX520 dated 1985)
  • Letteratura / Schemi (2)
  • - - Manufacturers Literature (Operation Instructions ST-JX520)
  • Autore
  • Modello inviato da Franz Scharner. Utilizzare "Proponi modifica" per inviare ulteriori dati.
