FM/AM 2 Band Receiver ICF-750W

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 283001

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage

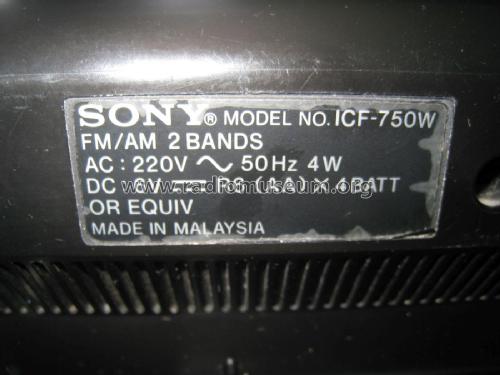

  • Line / Batteries (any type) / 220 / AA: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/AM 2 Band Receiver ICF-750W - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Uscita per cuffia; consumo : 4W.  Controllo di volume e tono; maniglia di trasporto; antenna estensibile esterna.  Made in Malaysia

  • Net weight (2.2 lb = 1 kg)
  • 0.760 kg / 1 lb 10.8 oz (1.674 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
