• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156144

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA166 2SA124 2SA122 2SA122 2SA122 2SD64 2SD65 2SB51 2SB51 1T23 1T23 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / C: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

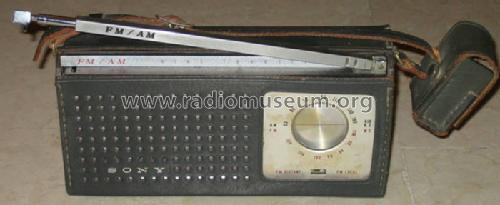

• Model: FM/AM 9 Transistor TFM-96 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7.5 x 4 x 2 inch / 191 x 102 x 51 mm

• Notes

• Sony TFM-96 FM/AM 9 Transistor;
  FM: 86.5 - 108 MHz,
  AM: 530 - 1605 kHz,
  round dial, metal front. Headphone jack.

• Price in first year of sale
• 147.00 DM

• Mentioned in
• Funkschau (21/1963, S.1484, Anzeige Generalvertretung f. Deutschland)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
