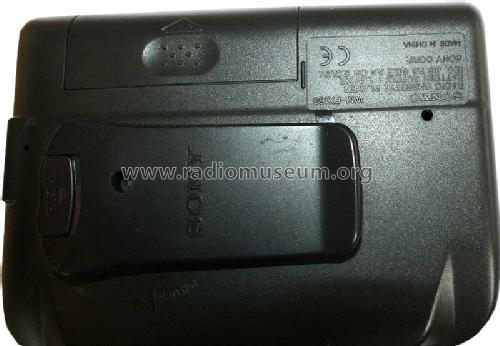

FM/AM Walkman WM-FX163

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1997
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238453

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / 2 x 1,5 / 3 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/AM Walkman WM-FX163 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 119 x 81 x 34 mm / 4.7 x 3.2 x 1.3 inch
  • Notes

  • Sony Walkman AM/FM Radio Cassette Player Model WM-FX163. Mega Bass.  Frequency Range: FM 87,5 -108 MHz. AM 526 - 1606 kHz (Italy) 531 - 1602 kHz (other countries). Belt Clip. AVLS. Mega Bass, Norm / CrO2 / METAL.
    Made in China.

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
