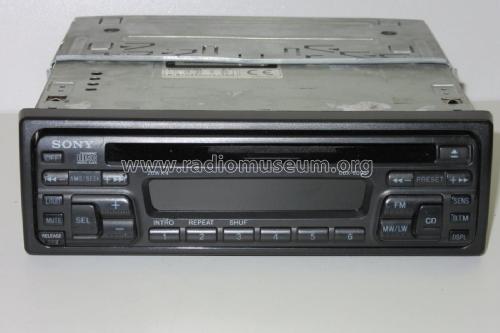

FM/MW/LW Compact Disc Player CDX-5090
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1995 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 285393
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: FM/MW/LW Compact Disc Player CDX-5090 - Sony Corporation; Tokyo
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 178 x 50 x 175 mm / 7 x 2 x 6.9 inch
- Notes
-
Modell: FM/MW/LW Compact Disc Player CDX-5090; Sony Tokio.
Ausgangsleistung: 4x 20W; Display abnehmbar; Rahmenmaß 187 x 57mm.
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
- Other Models
-
Here you find 3995 models, 3856 with images and 958 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sony Corporation; Tokyo
Collections
The model FM/MW/LW Compact Disc Player is part of the collections of the following members.
Forum contributions about this model: Sony Corporation;: FM/MW/LW Compact Disc Player CDX-5090
Threads: 1 | Posts: 4
Bitte um folgenden Tipp:
Für das CD-Autoradio SONY CDX-5090 benötige ich die Anschlussbelegung des Steckers.
Leitung rot und gelb sind getrennt abgesichert, also Pluspol.
Leitung gelb/weiss ist unklar.
Leitung schwarz könnte Minus-Pol sein.
Hans-Werner Ellerbrock, 13.Nov.16
