FM/MW/LW Compact Disc Player CDX-L420V CD-R/RW
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 2002 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 339085
- Number of Transistors
- 20
- Main principle
- Superheterodyne (common); ZF/IF 10700/450 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 180 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: FM/MW/LW Compact Disc Player CDX-L420V CD-R/RW - Sony Corporation; Tokyo
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 182 x 53 x 177 mm / 7.2 x 2.1 x 7 inch
- Notes
-
Stereo car radio with LW/MW and FM stereo/mono. Audio frequency response in FM mode: 30 ÷ 15,000 Hz. Stereo CD player with audio frequency response 10 ÷ 20,000 Hz.
RDS, AF (Alternative frequency) allows to keep tuned to the same station while traveling,
TA (traffic announcement).
PTY: Allows to choose various types of programs in FM, like: Music, News, Affairs, Wheather, Finance, Children and many others. Not in all Countries PTY is available.
6 keys allow the preselection of 6 stations in FM1, 6 in FM2, 6 in FM3, 6 in MW and 6 in LW.
Tone controls: Bass ± 9 dB at 100 Hz; Treble ± 9 dB at 10 kHz.
Output for the control relay of the electric antenna. LCD display.
The ATT function, when activated, automatically reduces the volume of the radio while using the phone.
A multi control is available on request to be installed near the steering wheel.

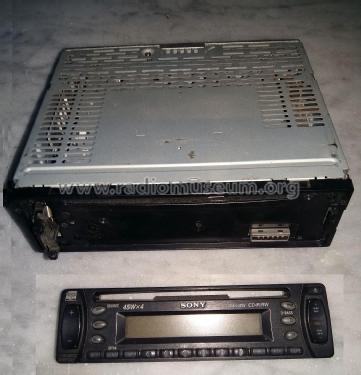

Removable faceplate.
Power output: 45 W x 4 at 4 Ω. Output impedance 4 - 8 Ω.20 Transistors, 8 ICs and 33 Diodes, listed one per type and not all.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
