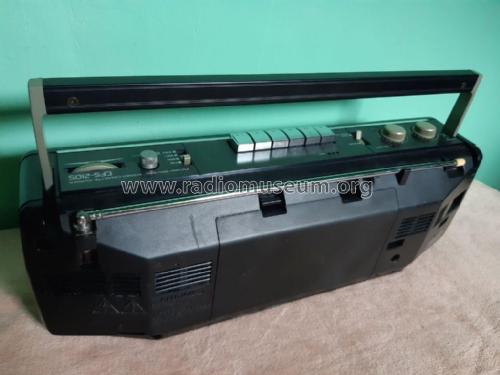

FM/MW/SW1/SW2 Stereo Cassette-Corder CFS-210S

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 257854

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110 - 120 / 220 - 240 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/MW/SW1/SW2 Stereo Cassette-Corder CFS-210S - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 16.5 x 5.5 x 4.5 inch / 419 x 140 x 114 mm
  • Notes

  • Sony Stereo Cassette-Corder 4Bands Model CFS-210S.
    Tuning Range: FM 87,6 - 108 MHz, AM 530 - 1605 kHz
    SW1 2.3 - 7 MHz, SW2 7 - 22 MHz
    Frontloading Cassette Player/Recorder, Auto Shut Off, Soft Eject System
    Telescoping Antenna, Carrying Handle
    Power Consumption 12 Watts.


  • Net weight (2.2 lb = 1 kg)
  • 5 lb (5 lb 0 oz) / 2.270 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
