• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2007

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337027

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• unknown_tr_NPN CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF ?/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / D: 2 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

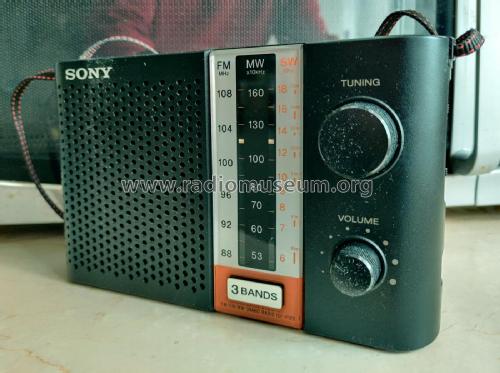

• Model: FM/SW/MW 3 Band Radio ICF-F12S - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 216 x 130 x 67 mm / 8.5 x 5.1 x 2.6 inch

• Notes

• AM/FM/SW portable radio.

  AM	87.5-108 MHz
  FM	530-1605 kHz
  SW	5.9-18 MHz

  Radio employs the CXA1019M/P/S one chip radio IC.

  See also ICF-F11S which covers the 2.3 - 7.35 MHz shortwave band.

• Net weight (2.2 lb = 1 kg)
• 0.676 kg / 1 lb 7.8 oz (1.489 lb)

• Mentioned in
• - - Manufacturers Literature (ICF-F11S, ICF-F12S - Sony Audio Service Manual (repair manual))

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
