• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1971 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 229217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• 2SC633 2SB495 2SB495 CX-016 10D-2 10D-2 1T22

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Line / Batteries (any type) / 100; 110-120; 220; 240 / DC: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: I.C. Solid State / Cassette-Corder TC-70 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 225 x 55 x 210 mm / 8.9 x 2.2 x 8.3 inch

• Notes

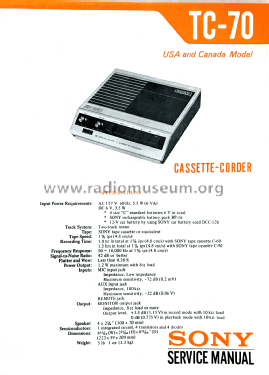

• Sony "I.C. solid state / cassette-corder" TC-70

  Two-track mono cassette recorder, tape speed 4.8 cm/s.
  Frequency response 50 - 10,000 Hz.

  Aux input jack, Mic input jack, Remote jack.
  Monitors output jack. VU meter.

  Speaker 100 x 70 mm. 1 IC, 4 diodes.

  1 unknown Diode 10D-05.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)

• Author
• Model page created by Neil Van Dusen. See "Data change" for further contributors.

• Other Models

• Here you find 3937 models, 3797 with images and 951 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sony Corporation; Tokyo
