ICB-170
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1974
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 129346
Aus Prospekt für Deutschland um 1972
eigene Sammlung
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: ICB-170 - Sony Corporation; Tokyo
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 56 x 203 x 40 mm / 2.2 x 8 x 1.6 inch
- Notes
-

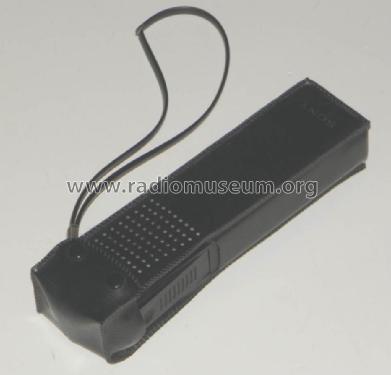

Handheld CB transceiver with 9 Transistors and 1 IC. TX output 100 mW, xtal controlled frequency 27.175 MHz. Earphone jack, suitable earphone types ME-20 or ME-20A. Approved in Germany under FTZ number K-180/74.
- Net weight (2.2 lb = 1 kg)
- 0.320 kg / 0 lb 11.3 oz (0.705 lb)
- Literature/Schematics (1)
- Aus Prospekt für Deutschland um 1972
