FM/LW/MW/SW PLL Synthesized Receiver ICF-2002

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1983–1987

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
74864

Schematics

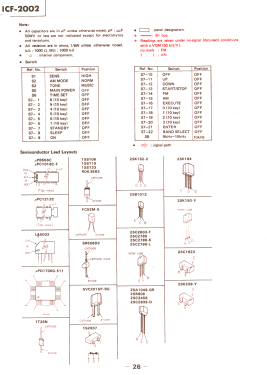

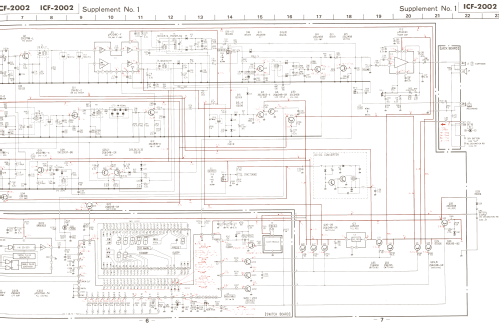

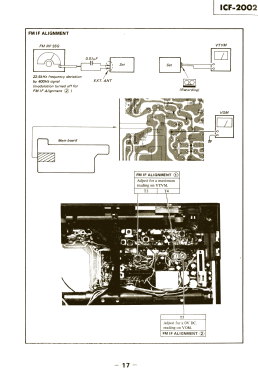

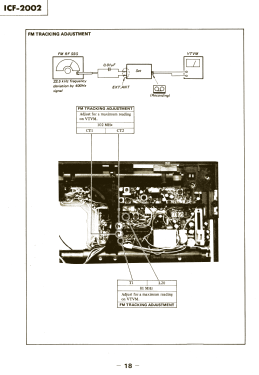

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008458) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008459) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008460) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008461) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008462) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008463) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008464) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008465) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008466) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008467) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008468) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008469) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008470) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008471) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008472) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008473) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008474) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008475) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008476) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 3008477) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (3)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 314956) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (1)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 314957) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (1)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 314958) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (1)

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 2301886) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (2)

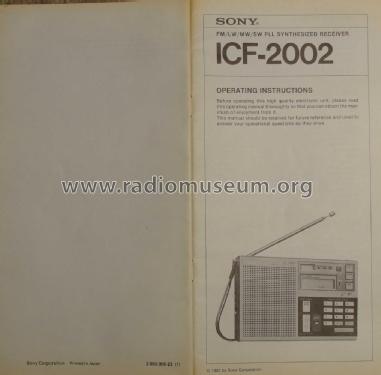

manual pgs 1 & 28

FM/LW/MW/SW PLL Synthesized Receiver ICF-2002; Sony Corporation; (ID = 2301887) Radio — Sony Corporation; FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 (2)
manual pgs 2 & 27

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 55395/455 kHz

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Dry Batteries

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch

Power out
0.4 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: FM/LW/MW/SW PLL Synthesized Receiver ICF-2002 - Sony Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
180 x 120 x 35 mm / 7.1 x 4.7 x 1.4 inch

Notes
covering 153 - 29995 kHz, 76-108 MHz; AM, SSB (BFO, fine tuning between 5 kHz steps); digital readout 5 kHz, 10 memories, direct keypad frequency entry, clock / timer (identical to model ICF-7600D).

Net weight (2.2 lb = 1 kg)
0.6 kg / 1 lb 5.1 oz (1.322 lb)

External source of data
R.Lichte

Author
Model page created by Martin Bösch. See "Data change" for further contributors.
