ICF-2003
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1987–1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74868
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 55395/455 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

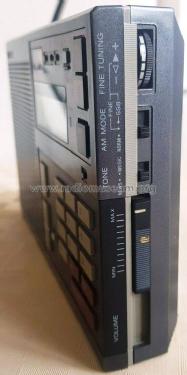

- Model: ICF-2003 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 120 x 35 mm / 7.1 x 4.7 x 1.4 inch
- Notes
- covering 153 - 29995 kHz, 76-108 MHz; AM, SSB (BFO, fine tuning between 5 kHz steps); digital readout 5 kHz, 10 memories, direct keypad frequency entry, clock / timer (identical to ICF-7600DS).
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- External source of data
- R.Lichte
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
- Other Models
-
Here you find 3931 models, 3791 with images and 950 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sony Corporation; Tokyo
Forum contributions about this model: Sony Corporation;: ICF-2003
Threads: 1 | Posts: 3
Hi,
I got this radio recently and I haven't found a manual online. Can someone tell me how to program and recall station presets? I've been using the large "Execute" button to manually set, e.g. FM 921 <EXECUTE>. There's also a small recessed ENTER button I haven't figured out. From specs there should be 10 presets, I suppose 0,1,2...,9.
Thanks,
Craig
Craig Hyatt, 18.Apr.24
