• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1999

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204725

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

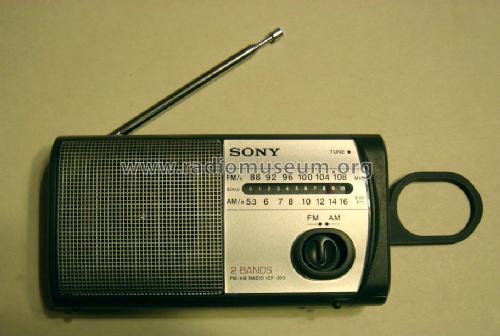

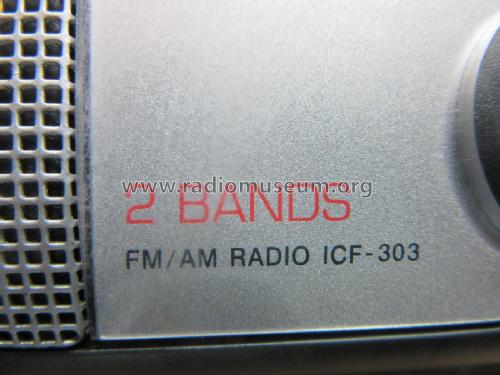

• Model: ICF-303 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 156.9 x 82.5 x 41.1 mm / 6.2 x 3.2 x 1.6 inch

• Notes

• Frequency range:

  Band	ICF-303	ICF-303L
  FM FM (East European model)	87.5 - 108 MHz 65 - 108 MHz	87.5 - 108 MHz - - -
  AM (MW)	530 - 1605 kHz	- - -
  LW	- - -	153 -255 kHz







  Features:
  TUNE indicator for easy tuning

• Net weight (2.2 lb = 1 kg)
• 0.309 kg / 0 lb 10.9 oz (0.681 lb)

• Mentioned in
• -- Original-techn. papers. (Service-Manual)

• Author
• Model page created by Hans-Friedrich Völkening † 22.3.16. See "Data change" for further contributors.
