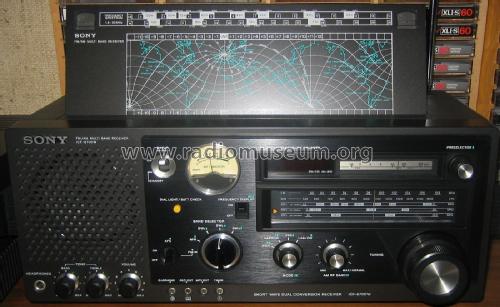

ICF-6700W
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1978–1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74190
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 32
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 10700/455 kHz
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110-240 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: ICF-6700W - Sony Corporation; Tokyo
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 190 x 235 mm / 18.1 x 7.5 x 9.3 inch
- Notes
- Coverage 530-1605, 1600-10000, 11500-20000, 20000-29500 kHz, AM, USB/LSB, FM(VHF), preselector; variant: ICF-6700L covering LW. Ext.power jack: DC 9 V.
- Net weight (2.2 lb = 1 kg)
- 5.4 kg / 11 lb 14.3 oz (11.894 lb)
- Source of data
- Shortwave Receivers - Past & Present (3rd ed.)
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
