ICF-7600A
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1983
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74865
STS Archív.
The set was given to me by Moses Dallafiora.
The set was given to me by Moses Dallafiora.
The set was given to me by Moses Dallafiora.
Michael Kotzot

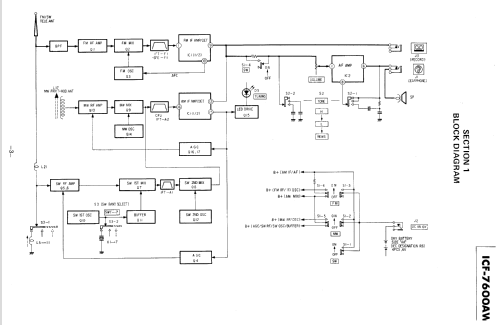

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: ICF-7600A - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 120 x 35 mm / 7.1 x 4.7 x 1.4 inch
- Notes
- coverage shortwave 49/41/31/25/19/16/13m, 76-108 MHz FM.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- External source of data
- R. Lichte
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
- Other Models
-
Here you find 3952 models, 3812 with images and 954 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sony Corporation; Tokyo
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Sony Corporation;: ICF-7600A
Threads: 2 | Posts: 2
(Cont. of Point 5 - Badly worn volume sliding pot)
I ordered a small 15ml botle of "Conductive Paint" from Green Stuff World supplier, and used a small brush to apply 5 or 6 layers of paint over the left and right extreme sides near the terminals of the 10KR pot resistor. Did the same all over the cursor strip. We need to be patient on this job, by applying small amounts of thin layers at a time, and waiting at least 15 minutes between paintings.
The result was better than expected. Audible noise when moving the sliding cursor was virtually eliminated and the sound control is now smooth.
Jose Mesquita, 09.Sep.20
Got this radio model with a good external case and antenna.
I found and have fixed these problems, some are typical issues with this model:
1. Battery corrosion at the contacts: Cleaning using vinegar have fix it.
2. Tone switch contacts oxidation, resulting in audio loss: Dismantling the switch and cleaning have fix it.
3. Missing original Sony speaker: Found a Chinese similar model in UK eBay seller that looks identical to the original, same sizing and electrical specifications. Only difference is the original SONY label printed in the speaker.
4. Short Wave bands are dead (but FM and MW reception works fine):
Power supply rails are OK, oscillators are OK, but the antenna protection diodes (D6 to D9, 1S1555) were burned and in short-circuit. Replaced them with 1N4148 diodes, but it did not fix the issue.
Checked the SW RF AMP FET transistor Q5 (2SK192A) and it was in short-circuit between Dreno and Source. Replaced with a more modern 2SK241 and it resolved the problem.
5. Badly worn volume sliding pot, with audio loss: Found a Chinese similar model replacement, but this new component do not fit correctly in terms of size.
I prefer to leave the original potentiomenter in use, but it presents around 200KR instead of the nominal 10KR. The issue looks to be depleted conductive material at the low volume position near the riveted terminal. Also the same issue is shown at the cursor trace.
I have ordered some conductive paint with silver content, to apply on the affected zones and see the result.
Will let you know about the results.
Jose Mesquita, 31.Aug.20
