FM/AM Multiband Receiver ICF-7600AW

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74877

• Picture

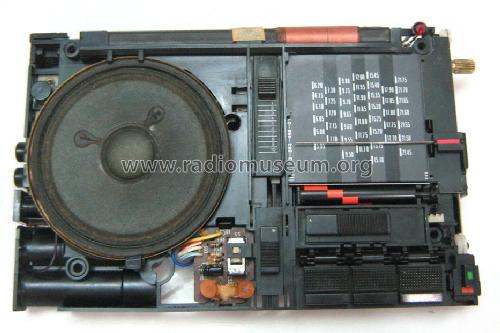

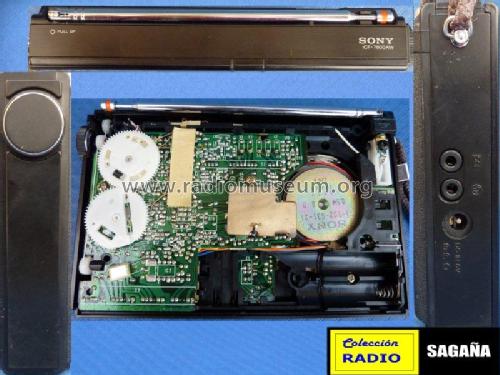

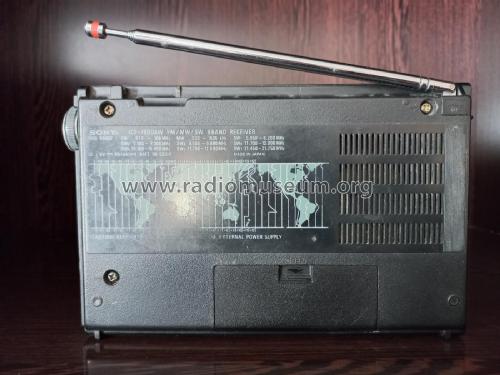

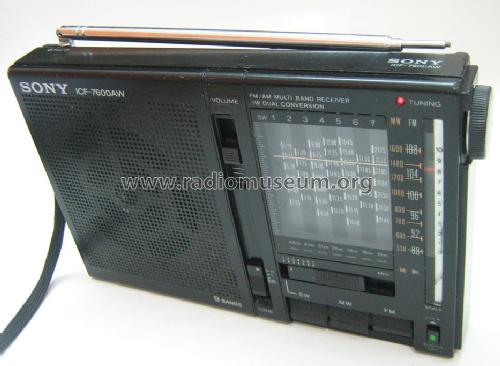

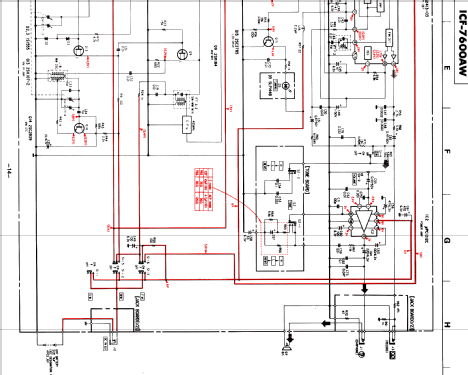

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• 2SK121 2SC2840 2SA1027 2SA1027 2SK193 2SC1674 or. 2SC2786 2SC2839 2SC2785 2SK192 2SC2839 2SK184 2SK184 2SC668 or. 2SC2839 2SC2839 2SK107 2SC2839 2SC2785 or. 2SA1115 or. 2SA1115 HA12413 µPC1212 SLP144B SD115

• Main principle
• Superhet, double/triple conversion; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1,5 / DC: 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch

• Power out
• 1 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/AM Multiband Receiver ICF-7600AW - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 179 x 117 x 31 mm / 7 x 4.6 x 1.2 inch

• Notes

• Coverage shortwave 49/41/31/25/19/16/13m, 88-108 MHz FM (European model).
  Analog shortwave portable (SW: dual conversion).
  Record out jack.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• External source of data
• R.Lichte

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
