FM/AM 2 Band Radio ICF-9550W
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121322
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM/AM 2 Band Radio ICF-9550W - Sony Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 9.25 x 6.25 inch / 368 x 235 x 159 mm
- Notes
-

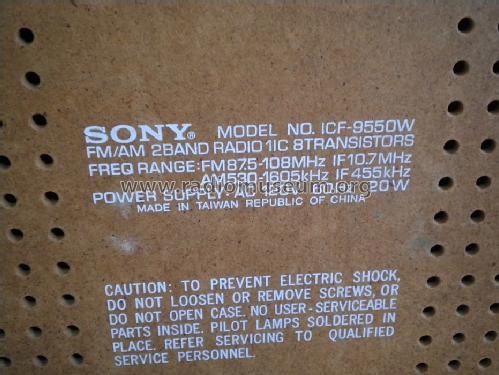

Sony Table Top FM/AM 2Band Radio High Fidelity Sound Model ICF-9550W.
Tuning Range FM 87,5 - 108 MHz, AM 530 - 1605 kHz.
Bass-, Treble-Control, Loudness On/Off.
Power Consumption 20 Watts.
1 x IC, 8 x Transistors.
Made in Taiwan Republic of China.
- Net weight (2.2 lb = 1 kg)
- 7 lb 6 oz (7.375 lb) / 3.348 kg
- Author
- Model page created by a member from A. See "Data change" for further contributors.
