• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144550

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; none

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6.6 cm = 2.6 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

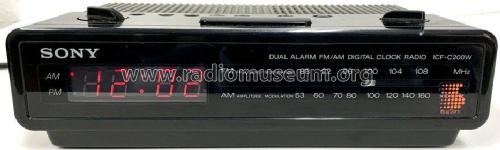

• Model: ICF C200W - Sony Corporation; Tokyo

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 240 x 65 x 153 mm / 9.4 x 2.6 x 6 inch

• Notes
• FM: 87,6 - 108 MHz (US and Canadian model)
  FM: 87,6 - 107.5 MHz (AEP, West Germany model)
  AM: 530 - 1605 kHz (US and Canadian model)
  AM: 531 - 1602 kHz (AEP, West Germany model)
  Power backup: 9V cell.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
