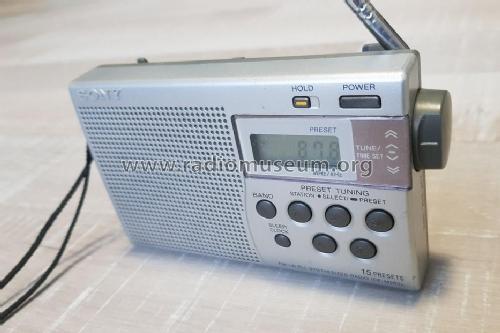

FM/LW PLL Synthesized Radio ICF-M260L
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1998 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106342
- Number of Transistors
- 9
- Semiconductors
- CXA1019M
- Main principle
- PLL, Phase-locked loop; ZF/IF 450/10700 kHz
- Wave bands
- Long Wave and FM or UHF
- Details
- Radio with other functions
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 0.12 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/LW PLL Synthesized Radio ICF-M260L - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 130 x 80 x 30 mm / 5.1 x 3.1 x 1.2 inch
- Notes
-
FM-LW (GO) pour la France.
- FM = 87.5 - 108 MHz
- LW = 153 - 279 kHz
Voir aussi Sony ICF-M260 avec FM/AM (PO).
- Net weight (2.2 lb = 1 kg)
- 0.320 kg / 0 lb 11.3 oz (0.705 lb)
- Literature/Schematics (1)
- -- Original-techn. papers. (Sony Service manual for ICF-M260 and ICF-M260L)
- Author
- Model page created by Ervé Leclercq. See "Data change" for further contributors.
