9 Bands FM / MW / SW Receiver ICF-SW20

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1989

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
79415

Schematics

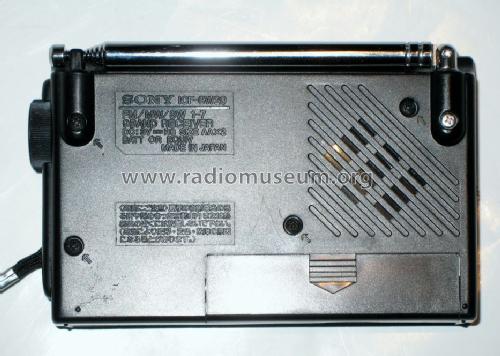

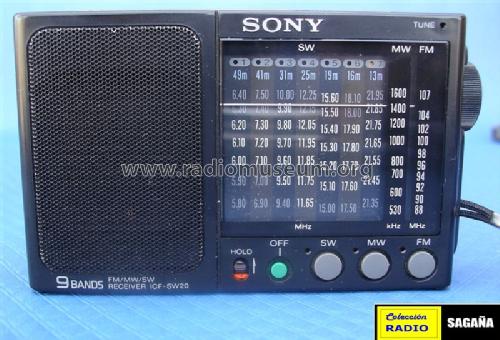

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1841362) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1841363) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1344905) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1344904) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1344902) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345178) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345180) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345181) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345182) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345183) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345184) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 1345185) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (3)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 3013852) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (1)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 2975473) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (1)
Sony SW-20 double conversion receiver

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 2975475) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (1)

9 Bands FM / MW / SW Receiver ICF-SW20; Sony Corporation; (ID = 2975474) Radio — Sony Corporation; 9 Bands FM / MW / SW Receiver ICF-SW20 (1)

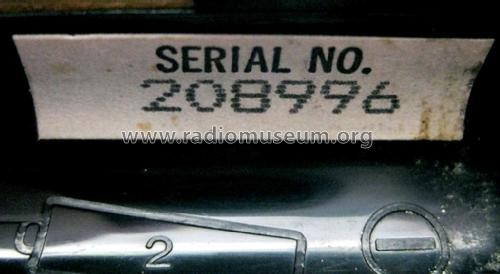

Serial number
