FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1997

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
72813

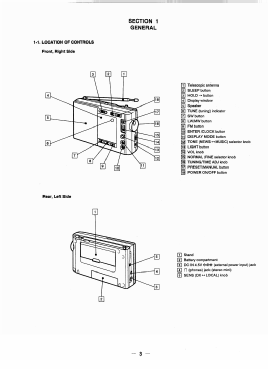

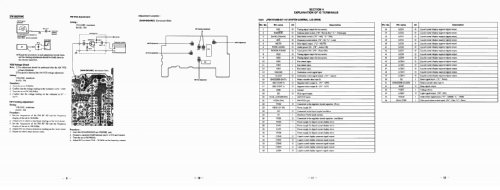

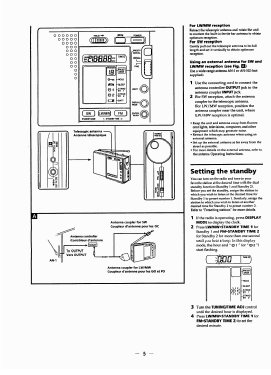

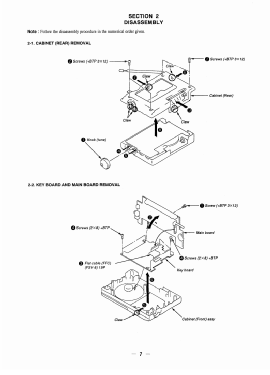

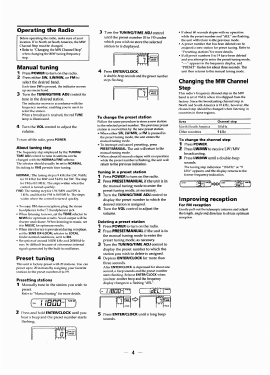

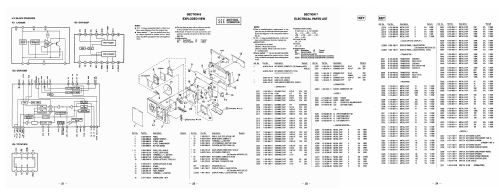

Schematics

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945435) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945424) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945425) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945426) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945427) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945428) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945429) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945430) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945431) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945432) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945433) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 945434) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (3)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 64549) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)
Sony ICF-SW40

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 700450) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 700451) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 700452) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 1726498) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133665) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133668) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133669) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133670) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133671) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136487) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136486) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136485) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133666) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133667) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133672) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2133673) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136488) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136490) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136491) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136493) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40; Sony Corporation; (ID = 2136494) Radio — Sony Corporation; FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 10700/450/10700 kHz

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Storage and/or dry batteries / 4.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

Power out
0.24 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: FM Stereo / SW / MW / LW PLL Synthesized Receiver ICF-SW40 - Sony Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
170 x 106 x 35 mm / 6.7 x 4.2 x 1.4 inch

Notes
Integrierte Digital-Uhr, FM-Stereo mit Kopfhörer, mehrere IC's und Transistoren, 20 Memory Presets.
Shortwave coverage 3,85 - 26,1 MHz AM, FM coverage 76 - 108 MHz;
digital and pseudo-analog readout.

Net weight (2.2 lb = 1 kg)
0.4 kg / 0 lb 14.1 oz (0.881 lb)

Price in first year of sale
299.00 SFR

Mentioned in
Alles über die Sony Weltempfänger, R. Lichte

Author
Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
