• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1973

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 160968

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 36 W (52 W max.)

• Material
• Wooden case

• from Radiomuseum.org

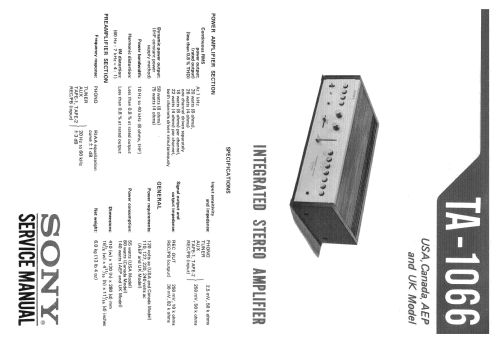

• Model: Integrated Amplifier TA-1066 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 416 x 120 x 280 mm / 16.4 x 4.7 x 11 inch

• Notes

• Integrated Stereo Amplifier with 15 Watts per channel into 8 ohms.

  Power output rated output (less than 0.8% THD): at 1kHz

    20 watts per channel into 8Ω (stereo) one shannel driven separately

    26 watts per channel into 4Ω (stereo) one shannel driven separately

    18 watts per channel into 8Ω (stereo) both shannels driven simultaneously

    22 watts per channel into 4Ω (stereo) both shannels driven simultaneously

  Frequency response: 20Hz to 60kHz

  Power bandswidth: 10Hz to 40kHz (8Ω, IHF)

  Total harmonic distortion: less than 0.8% at rated output

  IM distortion: less than 0.8% at rated output (60Hz : 7kHz =4:1)

  Damping factor: 22

  Input sensitivity: 2.5mV (MM), 250mV (line)

  Signal to noise ratio: 70dB (MM), 90dB (line)

  Output: 250mV (line), 30mV (DIN)

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 27,800.00 JPY

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
