• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 254014

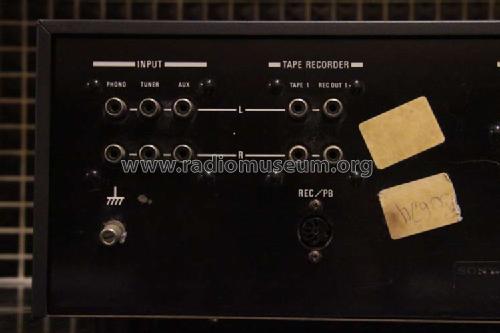

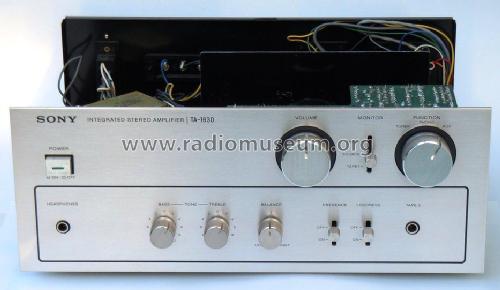

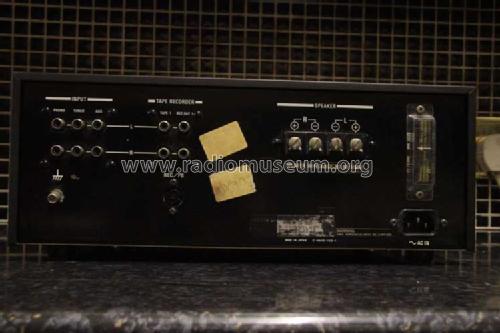

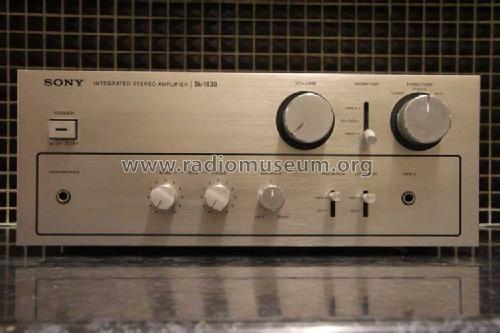

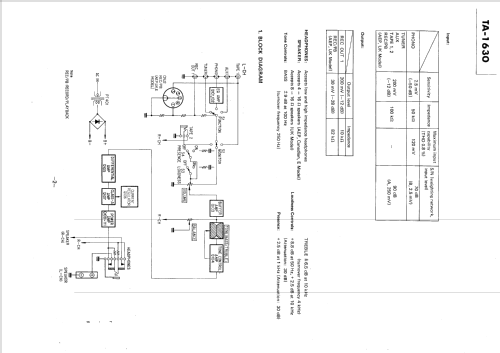

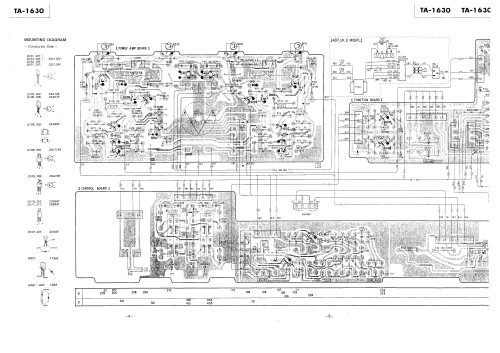

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Integrated Stereo Amplifier TA-1630 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 388 x 145 x 286 mm / 15.3 x 5.7 x 11.3 inch

• Notes

• Power output: 22 watts per channel into 8Ω (stereo).
  Frequency response: 20Hz to 100kHz.
  Total harmonic distortion: 0.5%.
  Damping factor: 40.
  Input sensitivity: 2.5mV (MM), 200mV (line).
  Signal to noise ratio: 70dB (MM), 90dB (line).
  Output: 200mV (line), 30mV (DIN).
  Speaker load impedance: 4Ω to 16Ω.

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Author
• Model page created by Bartosz Szwed. See "Data change" for further contributors.
