• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1980 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 258702

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

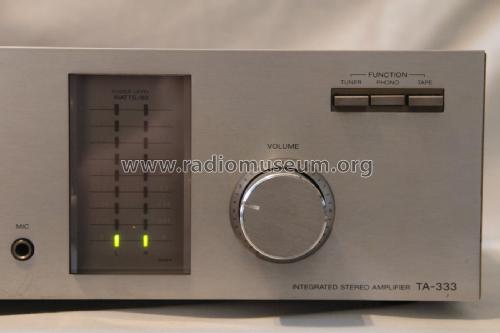

• Model: Integrated Stereo Amplifier TA-333 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 135 x 290 mm / 16.9 x 5.3 x 11.4 inch

• Notes

• Sony Integrated Stereo Ampliifer Model TA-333
  Direct output coupling, pure complementary symmetry power amplifier circuit ( SEPP OTL)
  25 WPC (20 - 20000 Hz, 8 Ohms)
  Microphone mixing facility
  AC Outlet 1 Switched max. 100 Watts.
  2 Unswitched (total 200 Watts)

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Mentioned in
• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
