Integrated Stereo Amplifier TA-EX77
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1997 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 270568

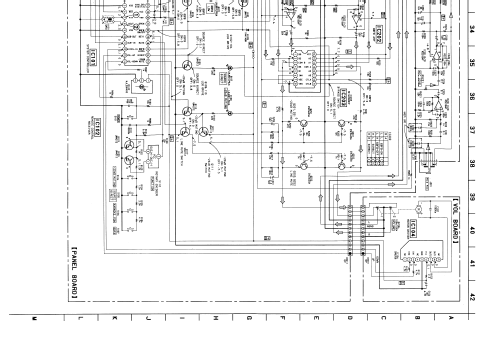

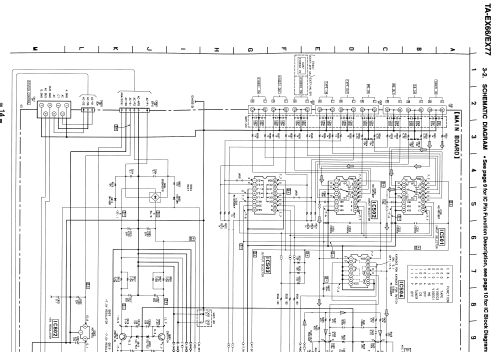

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 90 W (210 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Integrated Stereo Amplifier TA-EX77 - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 280 x 122.5 x 298 mm / 11 x 4.8 x 11.7 inch
- Notes
-
Amplifier section for DHC-EX77MD and DHC-MD77.
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
