• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1972

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 127032

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• 68

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

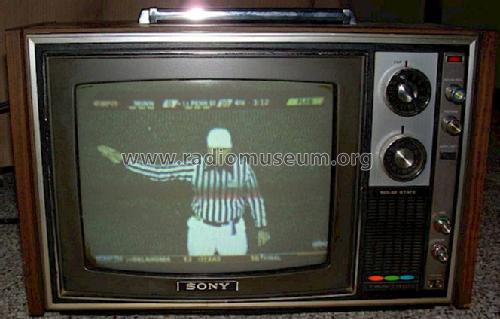

• Model: KV-1212 - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 474 x 318 x 394 mm / 18.7 x 12.5 x 15.5 inch

• Notes
• 12" Trinitron CRT portable style NTSC color TV, US standard drum & dial VHF/UHF tuner, walnut finished cabinet. 44 Diodes; 2 ICs. Power consum max. 78 Watt

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
