KV-C2911D AE-1, Chassis No. SCC-B14W-A

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 320759

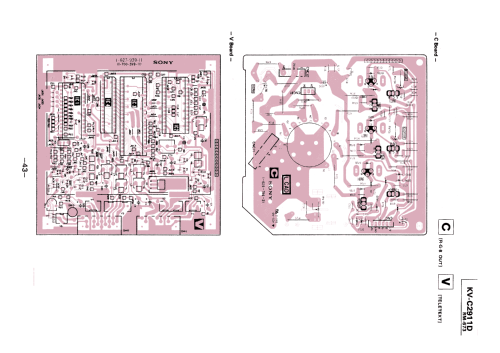

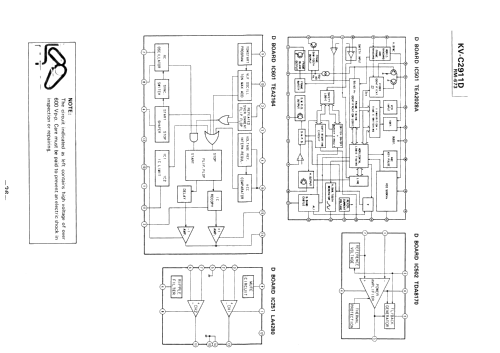

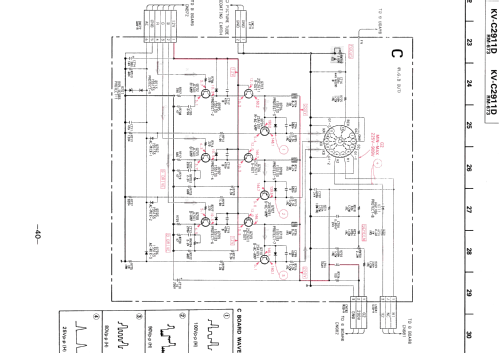

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 20 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: KV-C2911D AE-1, Chassis No. SCC-B14W-A - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 854 x 555 x 510 mm / 33.6 x 21.9 x 20.1 inch
  • Notes

  • Color system: PAL, SECAM, NTSC3.58, NTSC4.43;

    Channel coverage: (AEP) VHF E2-E12, UHF E21-E69, Cable TV S01-S03, S1-S41, (AUS) VHF 1-11, UHF 28-63;

    Inputs: 21-pin connector CENELEC Standard, 21-pin connector RGB, S.Video;

    Output: Headphones stereo minijack, external speaker terminals 2-pin DIN.

    68 cm,  110° Trinitron Picture Tube, type A68JYK10X.

  • Net weight (2.2 lb = 1 kg)
  • 51.4 kg / 113 lb 3.5 oz (113.216 lb)
  • Author
  • Model page created by Günter Kudicke. See "Data change" for further contributors.
