• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1962 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 134109

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1DK1 1DK1 1DK1 140CB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 117; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

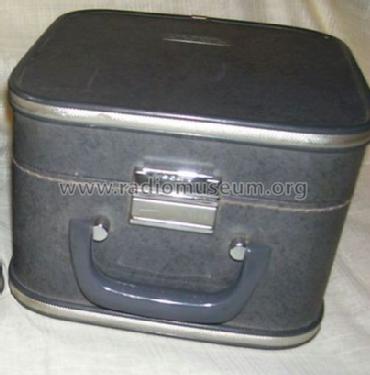

• Model: All Channel Transistor Television Receiver TV 5-307UW - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 6.75 x 4.25 x 8.5 inch / 171 x 108 x 216 mm

• Notes

• Sony TV 5-307UW

  • Micro TV
  • 5" black & white - picture tube
  • US standard VHF turret & UHF dial tuner

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
