• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144541

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA124 or. 2SA213 2SA124 2SA122 or. 2SA215 2SA122 or. 2SA216 2SA122 or. 2SA216 2SD64 2SD65 2SB51 2SB51

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

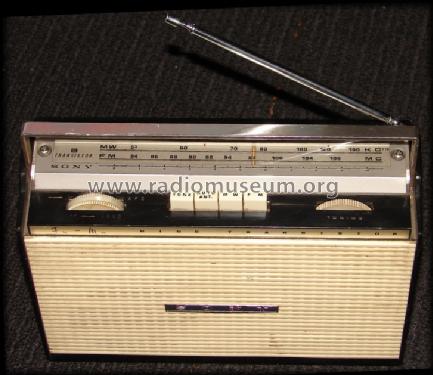

• Model: Nine Transistor TFM-95 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 7 x 4 inch / 254 x 178 x 102 mm

• Notes

• Sony FM-MW Nine Transistor TFM-95;
  FM up to 108 MHz, auto-antenna switch, tone button.

  See also models TFM-95B (MW/SW/FM) and TFM-95L (MW/LW/FM).

  Prepared for use as car radio with optional car bracket model RB-95.

• Price in first year of sale
• 79.95 USD

• Mentioned in
• -- Original prospect or advert (Sony Print Ad)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
