• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1963 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 326247

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA122 2SA122 2SC76 2SC76 2SA70 TT116 2SD64 2SB49 2SB49 1T23

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / AA: 8 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.12 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Nine Transistor Transceiver CB-901 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 80 x 210 x 45 mm / 3.1 x 8.3 x 1.8 inch

• Notes

• Sony CB-901 Citizen's Band Transceiver

  AM only; 100 mW RF

• Net weight (2.2 lb = 1 kg)
• 1.35 lb (1 lb 5.6 oz) / 0.613 kg

• Literature/Schematics (1)

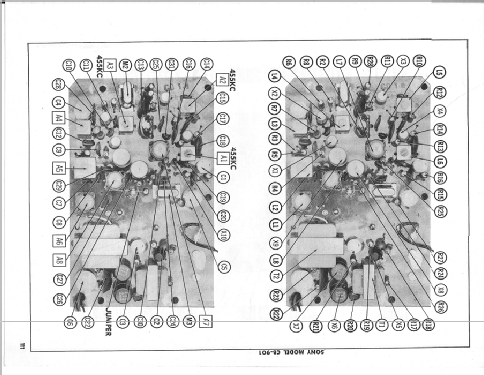

• Photofact CB Radio Manual, SAMS

• Author
• Model page created by Serioja Tatu. See "Data change" for further contributors.
