Omni-Directional / Low-Z Recording Microphone F-96
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1965 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 339689
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Omni-Directional / Low-Z Recording Microphone F-96 - Sony Corporation; Tokyo
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 0 x 6 x 0 inch / 0 x 152 x 0 mm
- Notes
-

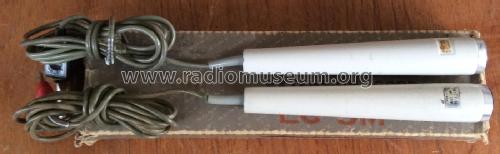

Sony F-96, Low-Z recording microphone with stand clip. This mic was originally available in either "Hi-Z" or "Lo-Z" versions.
Specifications:
Element Type: Dynamic
Pattern: Omni-Directional
Freq. Response: 80-12,000 Hz
Impedance: 600 ohms
Sensitivity: -58dB ±3dB (Low Imp version)
Termination: 6.5' / 2m stereo cable, terminated in 1/8" phono plug
All metal construction. These were standard equipment for many Sony tape recorders, including the Sony TC-500A, reel to reel tape deck.
- Author
- Model page created by Keith Ellison. See "Data change" for further contributors.
