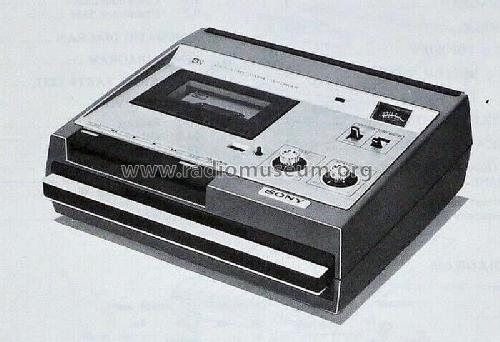

Portable Cassette Player TC-180

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1977 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 343678

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 110; 117; 125; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 5 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Cassette Player TC-180 - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 328 x 119 x 296.5 mm / 12.9 x 4.7 x 11.7 inch
  • Notes

  • Portable Cassette Player/Recorder Model Sony TC-180

    Standard Cassette
    50 - 12000 Hz
    Wow and Flutter < 0.2%

    Speaker 4" x 6 ", 8 ohms

    Inputs:
    Mic
    AUX
    Outputs:
    Monitor
    Ext Speaker (8 ohms)


  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature (Sony Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
