• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2008 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345043

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 50 Hz, 230 V / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

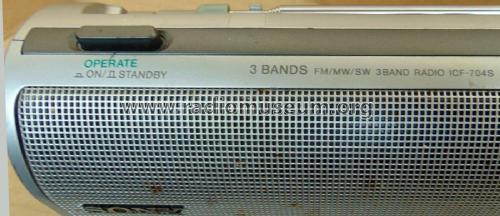

• Model: FM-MW-SW 3-Band Radio ICF-704S - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Portable AM/FM/SW radio.

  See AM/FM version ICF-704 and ICF-704L.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
