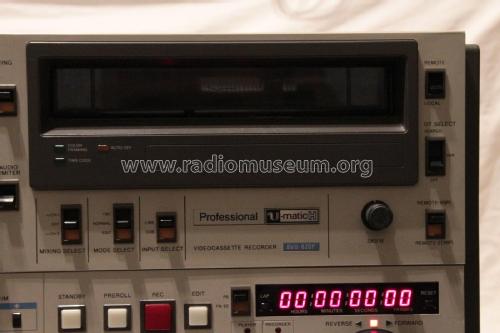

Professional U-Matic H Videocassette Recorder BVU-820P

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1983–1989 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 305785

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Video-Taperecorder/-Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Professional U-Matic H Videocassette Recorder BVU-820P - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 454 x 283 x 550 mm / 17.9 x 11.1 x 21.7 inch
  • Notes

  • Tape Speed: 3.75 in/sec (9.53 cm/sec)
    Record time: 60 min.
    Video recording System: Luminance FM, Chroma SC low-range conversion
    Input signal: NTSC
    Signal-to-Noise Ratio: better than 49 dB
    Horizontal Resolution: 340 lines monochrome, 260 lines color
    Audio input
    MIC: -60 dB, 3 kΩ, balanced
    LINE: +4 dB, 600 Ω/10 kΩ switchable, balanced
    Audio outputs
    LINE: +4 dB low impedance, balanced
    MONITOR: +4 dB low impedance, balanced
    HEADPHONES: -46 dB to -26 dB, 8 Ω, Binaural
    Audio Distortion: less than 2.0% at 1 kHz reference level
    Audio Frequency Responce: 50 Hz-15 kHz
    Audio Signa-to-Noise Ratio: 48 dB at 3% distortion level



  • Net weight (2.2 lb = 1 kg)
  • 38 kg / 83 lb 11.2 oz (83.7 lb)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
