• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1995 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294115

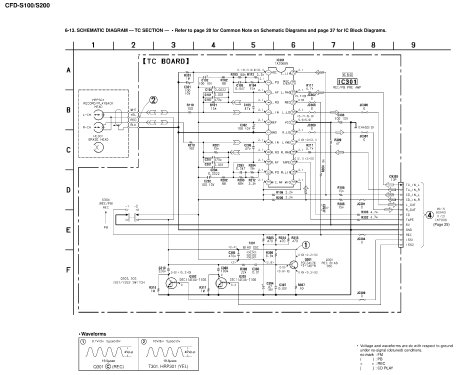

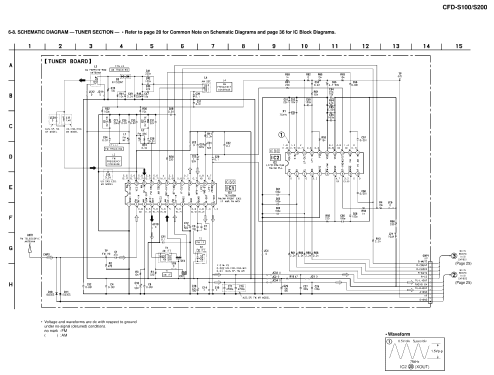

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type) / 230; 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Power out
• 4.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CD Radio Cassette Corder CFD-S200L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 386 x 166 x 252 mm / 15.2 x 6.5 x 9.9 inch

• Notes

• Radio, CD-Spieler und Cassettenrecorder mit Fernbedienung

  UKW 87,5 - 108 MHz, MW 531 - 1611 kHz, LW 153 - 279 kHz

  Kopfhörerbuche Impedanz 16 - 68 Ohm

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
